Example: salaries#
Import packages.
[1]:
%load_ext autoreload
%autoreload 2
[2]:
import matplotlib.pyplot as plt
import pandas as pd
import numpy as np
from generalized_additive_models import GAM, Categorical, Spline
/home/docs/checkouts/readthedocs.org/user_builds/generalized-additive-models/envs/stable/lib/python3.11/site-packages/generalized_additive_models/__init__.py:116: UserWarning:
Thank you for using generalized-additive-models, version 0.4.3.
Until version 1.0.0 is released, the package and API should be considered unstable.
You are welcome to use the package. Report bugs and join the discussion on GitHub:
https://github.com/tommyod/generalized-additive-models
warnings.warn(message)
Load data.
[3]:
from generalized_additive_models.datasets import load_salaries
df = load_salaries()
y = df["salary"].values
df.sample(5, random_state=42)
[3]:
| age | years_formal_relevant_education | years_relevant_work_experience | sector | geographical_location | work_domain | num_colleagues | salary | happy_with_salary | |
|---|---|---|---|---|---|---|---|---|---|
| 1656 | 28.0 | 5.0 | 2.0 | in-house, privat sektor | Trøndelag | data science | 100 - 500 | 850000.0 | 1 |
| 1412 | 53.0 | 4.0 | 28.0 | konsulent | Oslo | arkitektur | 1.000 - 10.000 | 1300000.0 | 1 |
| 480 | 28.0 | 3.0 | 4.0 | in-house, privat sektor | Oslo | fullstack | 10 - 50 | 810000.0 | 1 |
| 617 | 33.0 | 5.0 | 7.0 | in-house, privat sektor | Rogaland | automatisering | 100 - 500 | 720000.0 | 0 |
| 1075 | 43.0 | 3.0 | 18.0 | in-house, privat sektor | Oslo | fullstack | 10 - 50 | 1200000.0 | 1 |
Create sklearn pipeline#
[4]:
from sklearn.dummy import DummyRegressor
from sklearn.pipeline import Pipeline
from sklearn.compose import ColumnTransformer
from sklearn.preprocessing import OneHotEncoder
numerical_features = [
"age",
"years_formal_relevant_education",
"years_relevant_work_experience",
]
categorical_features = [
"sector",
"geographical_location",
"work_domain",
"num_colleagues",
]
pipe_union = ColumnTransformer(
[
("numerical", "passthrough", numerical_features),
("categorical", OneHotEncoder(), categorical_features),
]
)
pipeline = Pipeline([("transform", pipe_union), ("model", DummyRegressor())])
pipeline
[4]:
Pipeline(steps=[('transform',
ColumnTransformer(transformers=[('numerical', 'passthrough',
['age',
'years_formal_relevant_education',
'years_relevant_work_experience']),
('categorical',
OneHotEncoder(),
['sector',
'geographical_location',
'work_domain',
'num_colleagues'])])),
('model', DummyRegressor())])In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook. On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.
Parameters
| steps | [('transform', ...), ('model', ...)] | |
| transform_input | None | |
| memory | None | |
| verbose | False |
Parameters
| transformers | [('numerical', ...), ('categorical', ...)] | |
| remainder | 'drop' | |
| sparse_threshold | 0.3 | |
| n_jobs | None | |
| transformer_weights | None | |
| verbose | False | |
| verbose_feature_names_out | True | |
| force_int_remainder_cols | 'deprecated' |
['age', 'years_formal_relevant_education', 'years_relevant_work_experience']
passthrough
['sector', 'geographical_location', 'work_domain', 'num_colleagues']
Parameters
| categories | 'auto' | |
| drop | None | |
| sparse_output | True | |
| dtype | <class 'numpy.float64'> | |
| handle_unknown | 'error' | |
| min_frequency | None | |
| max_categories | None | |
| feature_name_combiner | 'concat' |
Parameters
| strategy | 'mean' | |
| constant | None | |
| quantile | None |
Model: dummy#
[5]:
from sklearn.model_selection import cross_validate
pipeline.steps[-1] = ("model", DummyRegressor())
results_dummy = cross_validate(pipeline, df, y, cv=10, scoring="r2")
(results_dummy["test_score"].mean(), results_dummy["test_score"].std())
[5]:
(np.float64(-0.002069391817402666), np.float64(0.0020411018924504382))
Model: linear#
[6]:
from sklearn.linear_model import Ridge
FEATURES = ["years_formal_relevant_education", "years_relevant_work_experience"]
pipeline.steps[-1] = ("model", Ridge())
results_linear = cross_validate(pipeline, df, y, cv=10, scoring="r2")
(results_linear["test_score"].mean(), results_linear["test_score"].std())
[6]:
(np.float64(0.409373930472669), np.float64(0.04665911598591264))
Model: boosting#
[7]:
from sklearn.ensemble import GradientBoostingRegressor
pipeline.steps[-1] = ("model", GradientBoostingRegressor())
results_boosting = cross_validate(pipeline, df, y, cv=10, scoring="r2")
(results_boosting["test_score"].mean(), results_boosting["test_score"].std())
[7]:
(np.float64(0.47572725410046895), np.float64(0.05714671603001127))
Create a GAM#
[8]:
penalty_spline = 10
penalty_categorical = 5
terms = (
Spline("age", penalty=penalty_spline, num_splines=8)
+ Spline("years_formal_relevant_education", penalty=penalty_spline, num_splines=8)
+ Spline("years_relevant_work_experience", penalty=penalty_spline, num_splines=8)
+ Categorical("sector", penalty=penalty_categorical)
+ Categorical("geographical_location", penalty=penalty_categorical)
+ Categorical("work_domain", penalty=penalty_categorical)
)
model = GAM(terms, link="identity")
results_gam = cross_validate(model, df, y, cv=10, scoring="r2")
(results_gam["test_score"].mean(), results_gam["test_score"].std())
[8]:
(np.float64(0.4552695797415082), np.float64(0.049566054940769995))
[9]:
model.fit(df, y)
model.summary()
| Property | Value |
|--------------------|-----------------|
| Model | GAM |
| Link | Identity() |
| Distribution | Normal |
| Scale | 45866971606.880 |
| GCV | 46635029130.767 |
| Explained deviance | 0.471 |
| Term | Coefs | Edof |
|-----------------------------------------|---------|--------|
| Spline(age) | 8 | 2.912 |
| Spline(years_formal_relevant_education) | 8 | 3.118 |
| Spline(years_relevant_work_experience) | 8 | 2.831 |
| Categorical(sector) | 4 | 2.898 |
| Categorical(geographical_location) | 12 | 10.232 |
| Categorical(work_domain) | 16 | 13.769 |
| Intercept() | 1 | 1 |
| Term | Coef | Coef std |
|-----------------------------------------------------------|------------|------------|
| Categorical(sector=frilans / selvstendig næringsdrivende) | 383046 | 53367.4 |
| Categorical(sector=in-house, offentlig/kommunal sektor) | -207806 | 49616.1 |
| Categorical(sector=in-house, privat sektor) | -122866 | 48924.1 |
| Categorical(sector=konsulent) | -52373.6 | 49029.9 |
| Categorical(geographical_location=Agder) | -30375.5 | 35499.9 |
| Categorical(geographical_location=Innlandet) | -75621.1 | 37953.4 |
| Categorical(geographical_location=Møre og Romsdal) | -47979.9 | 37400.3 |
| Categorical(geographical_location=Nordland) | -56677.1 | 40565.8 |
| Categorical(geographical_location=Oslo) | 74679.9 | 29294.5 |
| Categorical(geographical_location=Rogaland) | 5385.58 | 33041.4 |
| Categorical(geographical_location=Troms og Finnmark) | -30972.2 | 39288.2 |
| Categorical(geographical_location=Trøndelag) | -15617.6 | 32180 |
| Categorical(geographical_location=Vestfold og Telemark) | -39156.8 | 34465.2 |
| Categorical(geographical_location=Vestland) | 436.03 | 31514.8 |
| Categorical(geographical_location=Viken) | -20193.6 | 32783.5 |
| Categorical(geographical_location=utlandet) | 236092 | 51833.6 |
| Categorical(work_domain=UX / design) | -108507 | 38271 |
| Categorical(work_domain=app) | 11304.4 | 35086.4 |
| Categorical(work_domain=arkitektur) | 110786 | 33194 |
| Categorical(work_domain=automatisering) | -30254 | 36508 |
| Categorical(work_domain=backend) | 18303.3 | 26974.1 |
| Categorical(work_domain=data science) | -17637.9 | 34095.9 |
| Categorical(work_domain=databaser) | -41528.9 | 48109.9 |
| Categorical(work_domain=devops) | 30504 | 32890.5 |
| Categorical(work_domain=embedded/IOT/maskinvare) | 92335.7 | 43665.6 |
| Categorical(work_domain=frontend) | -9176.27 | 27464.8 |
| Categorical(work_domain=fullstack) | 1681.47 | 26120.8 |
| Categorical(work_domain=ingen av disse) | -165671 | 33303.4 |
| Categorical(work_domain=ledelse/administrativt) | 93721.4 | 29577 |
| Categorical(work_domain=programvare) | -39398.6 | 35485.2 |
| Categorical(work_domain=sikkerhet) | 28582.9 | 34913 |
| Categorical(work_domain=testing) | 24954.9 | 47410.7 |
| Intercept() | 903199 | 61478.3 |

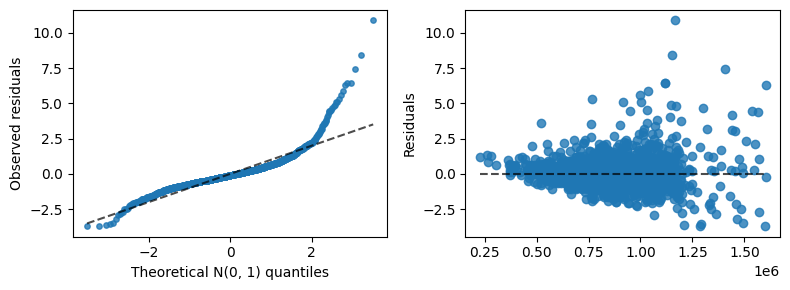

Inspect overall fit#
[10]:
from generalized_additive_models.inspection import QQDisplay, ResidualScatterDisplay
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(8, 3))
QQDisplay.from_estimator(model, df, y, ax=ax1)
ResidualScatterDisplay.from_estimator(model, df, y, ax=ax2)
fig.tight_layout()
plt.show()

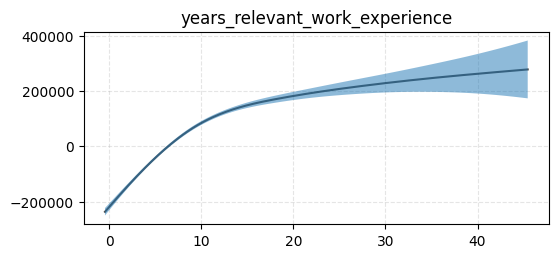

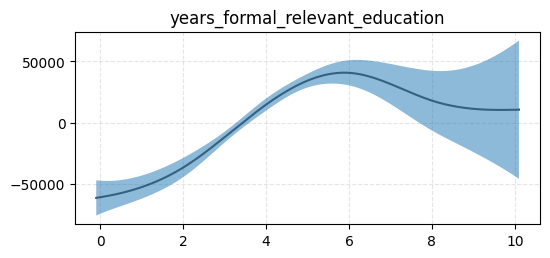

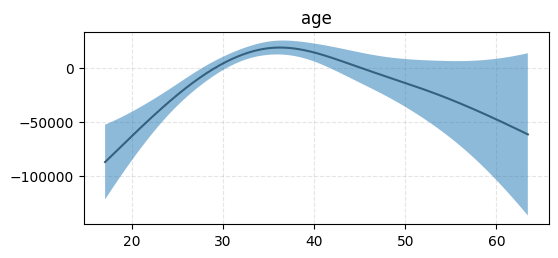

Inspect partial effects for spline features#
[11]:
from generalized_additive_models.inspection import PartialEffectDisplay
for term in model.terms:
if not isinstance(term, Spline):
continue
fig, ax = plt.subplots(figsize=(6, 2.5))
ax.set_title(term.feature)
PartialEffectDisplay.from_estimator(model, term, df, y, ax=ax, rug=False)
ax.grid(True, ls="--", zorder=0, alpha=0.33)
plt.show()

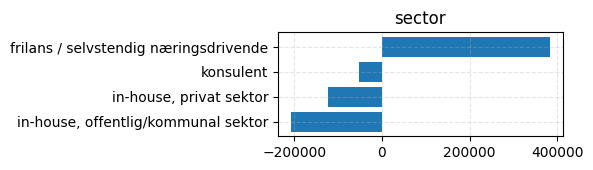

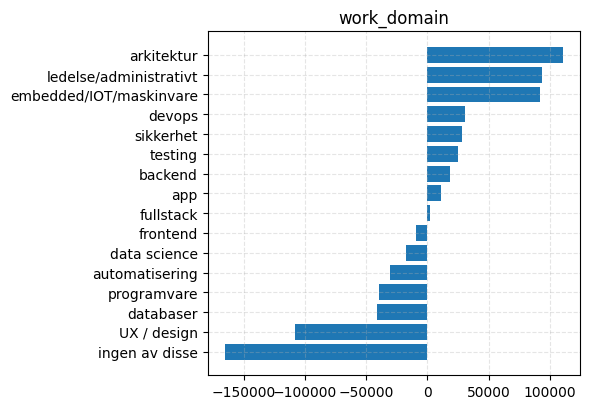

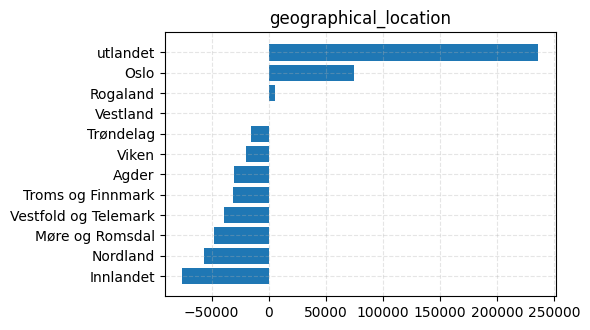

Inspect categorical features#
[12]:
for term in model.terms:
if not isinstance(term, Categorical):
continue
# Collect the information in a Series
series = pd.Series(term.coef_, index=term.categories_).sort_values()
# Create a horizontal bar plot
fig, ax = plt.subplots(figsize=(6, 1 + 0.2 * len(series)))
ax.set_title(term.feature)
ticks = np.arange(len(series))
ax.barh(ticks, series.values)
ax.set_yticks(ticks)
ax.set_yticklabels(series.index)
ax.grid(True, ls="--", zorder=0, alpha=0.33)
fig.tight_layout()
plt.show()
[ ]:
